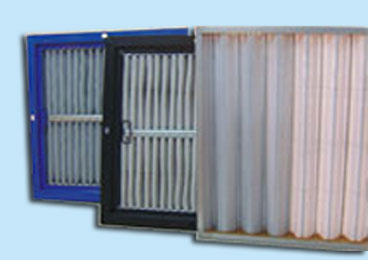

FINE FILTER EU-6 (F-6)

SUITABLE FOR

  • Air Filtration of 3 μ to 5 μ particles.
  • Secondary filtration in clean room industry such Electronics, Pharmaceuticals, Medical devices & others.
  • Final filtration in Film Industry, Telecom, Food, Tobacco, A/C of Superior Commercial & Residential Buildings.
Supercut filters are manufactured & tested in state of art machinery and testing facilities.

CONSTRUCTION & STANDARD

Filter Media : Non Woven Synthetic Multi Pleated/ Pocket Type
Media Support : Aluminium Mesh / HDPE Mesh
Frame Material : Aluminium / MS/ SS / GI
Frame Type : Box / Flange
Max. Op. Temp. : 80ºC
Sealant : Epoxy Resin
Gasket : None (Box type & Pocket type) Syn Rubber / PE Foam / Food Grade (Flange / Panel)
Direction of Air Flow : Flange to Cassette or reverse
Note :- MERV rated filters as per ASHRAE 52.2 available
