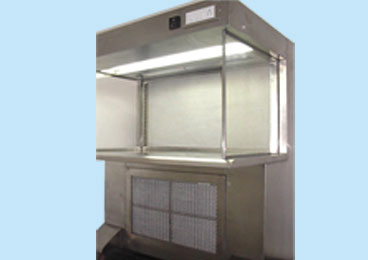

Laminar Air Flow (Horizontal)

DESCRIPTION :-

Supercut laminar work stations create areas supplied with a continuous flow of clean air to maintain a work environment that is free from dirt, particles, and toxic or noxious fumes. Laminar work stations are designed to foster worker comfort, convenience and productivity. These equipments are pre-fabricated, in a compact modular design and are available in a wide variety of sizes and configurations to satisfy nearly any requirement.



They provide a Class A working environment (according to GMP guidelines). The main focus of application is product or process protection against contamination introduced by many sources, such as personnel, general work area, manufacturing, performance, process, machinery, or the product itself.

Applications:

  • Pharmaceuticals and chemical research laboratories.
  • University clinics.
  • Electronic industry.
  • Optical industry.
  • Semiconductor production.
  • System engineering.
  • Aerospace
  • Nuclear industry.
  • Food processing industry.



Features:

  • Excellent cost / performance ratio
  • Minipleat HEPA filter of efficiency 99.97% for supply
  • User-friendly handling
  • Magnehelic gauge for pressure differential
  • Fluorescent light
  • UV light along with hour meter
  •  Acrylic/ Polycarbonate side panels

CONSTRUCTION & STANDARD

Air flow : Facing Operator (90±20%FPM)
Pre Filter : 90%down10μ
Hepa Filter : D.O.P tested having η 99.97% down to 0.3μ
Noise Level : Less than 65 dB
Light Level : Exceeds 100ft candles in work Area
Vibration : 0.0001" average displacement on work table
Pressure : Magnehalic Gauge 0-50mm WG
Switches : Micro processor based switches for blower, fluorescent light & UV light with LCD back light display.
Work table : Made of SS-304 gr, Cock for gas on work table.
Cabinet : The body is made of laminated board covered with sunmica from outside & epoxy painted from inside / SS 304 / MS Powder Coated.
Heavy Duty : Dynamically balanced motor blower
Blower : Assemblies are mounted on anti vibration pads.
Front & side : Acrylic Sheet (Transparent)/Polycarbonate sheet Door

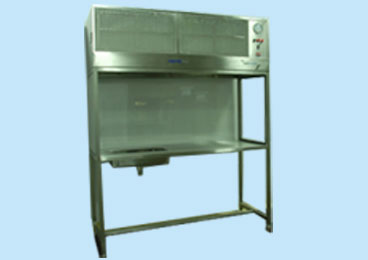

Laminar Air Flow (Vertical)

DESCRIPTION :-

Supercut laminar work stations create areas supplied with a continuous flow of clean air to maintain a work environment that is free from dirt, particles, and toxic or noxious fumes. Laminar work stations are designed to foster worker comfort, convenience and productivity. These equipments are pre-fabricated, in a compact modular design and are available in a wide variety of sizes and configurations to satisfy nearly any requirement.



They provide a Class A working environment (according to GMP guidelines). The main focus of application is product or process protection against contamination introduced by many sources, such as personnel, general work area, manufacturing, performance, process, machinery, or the product itself.

CONSTRUCTION & STANDARD

Air flow : Top to downward (90±20%FPM)
Pre Filter : 90%down10μ
HEPA Filter : D.O.P tested having η 99.97% down to 0.3μ
Noise Level : Less than 65 dB
Light Level : Exceeds 100ft candles in work Area
Vibration : 0.0001" average displacement on work table
Power Supply : 230v/ 50Hx Single Phase AC
UV Lamp : 15/30W
Switches : Micro processor based switches for blower, fluorescent light & UV light with LCD back light display.
Work table : Made of SS-304 gr, Cock for gas on work table.
Cabinet : The body is made of laminated board covered with sunmica from outside & epoxy painted from inside / SS 304 / MS Powder Coated.
Heavy Duty : Dynamically balanced motor blower.
Blower : Assemblies are mounted on anti vibration pads.
Front & side : Acrylic Sheet (Transparent) / Polycarbonate sheet Door
