CATEGORIES

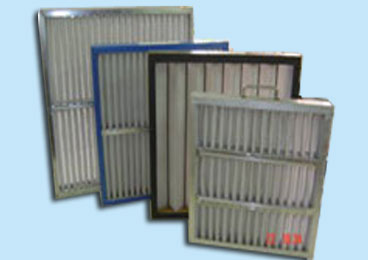

PRE FILTER EU3 / EU4 (G3 / G4)

DESCRIPTION :-

Supercut Pre filters are used for coarse pre-filteration

Provision against insects, textile fibers, coarse applications, Supercut Pre Filters are available in the range of 10 μ to 20 μ

SUITABLE FOR

  • Air Filtration of 10 μ to 20 μ particles.
  • General A/C & Air Cooling.
  • Pre Filtration for Hospitals, Hotels, Pharmaceuticals, Electronics etc.

    • Special Feature

  • Low initial Pressure Drop
  • Light in weight and easy to handle
  • High cost / Performance ratio
  • High dust holding capacity
  • Cleanable / Washable
Supercut filters are manufactured & tested in state of art machinery and testing facilities.

CONSTRUCTION & STANDARD

Filter Media : Non Woven Synthetic Multi Pleat /Pocket Type
Media Support : Alumn. Mesh/HDPE Mesh
Frame Material : Aluminium / Al. Extruded / MS/ SS / GI
Frame Type : Box (Pocket) / Flange (Panel)
Max. Op. Temp. : 80ºC
Sealant : Epoxy Resin
Gasket : None (Box type & Pocket type) Syn Rubber / PE Foam / Food Grade (Flange / Panel)
Direction of Air Flow : Flange to Cassette or reverse
Note :- The Pre filters of high Temperature (upto 200ºC) that is fire retardant media are also available.
