CATEGORIES

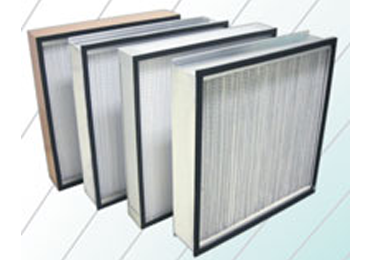

HEPA FILTER (Mini Pleat) EU-13 (H-13)

SUITABLE FOR

  • Air Filtration of 0.1μ to 0.3μ particles.
  • Secondary filtration for class 10 or better clean room.
  • Final filtration for clean room industry like Electronics, Pharmaceuticals, Medical disposable, Biotechnology, Photo film, Optical & Critical O.T.'s etc.
  • Clean Air equipments like laminar flow work stations, Bio Safety Cabinets , Dispensing booths etc.
  •

    Special Features



  • Low initial Pressure drop i.e Energy Saved.
  • High dust holding capacity.
  • High Cost / Perfomance ratio.
  • Individually leak tested.
Supercut filters are manufactured & tested in state of art machinery and testing facilities. Filters are tested D.O.P. test method as per EN-1822.

CONSTRUCTION & STANDARD

Filter Media : Micro Fibre Glass Paper (imported)
Separator : Aluminium Foil
Frame Material : Aluminium / SS
Frame Type : Box / Flange
Max. Op. Temp. : 120ºC
Max. Humidity : 100% RH
Sealant : PU / Epoxy Hardners
Gasket : Chloropren/Neoprene/PE Foam / Food Grade
Direction of Air Flow : As desired.

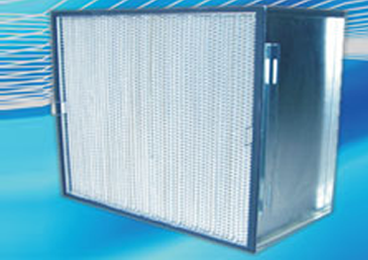

HEPA FILTER (Deep Pleat) EU-13 (H-13)

SUITABLE FOR

  • Air Filtration of 0.1μ to 0.3μ particles.
  • Secondary filtration for class 10 or better clean room.
  • Final filtration for clean room industry like Electronics, Pharmaceuticals, Medical disposable, Biotechnology, Photo film, Optical & Critical O.T.'s etc.
  • Clean Air equipments like laminar flow work stations, Bio Safety Cabinets Dispensing booths etc.
Note:- Hi flow deep Pleated Hepa filters are also manufactured.

CONSTRUCTION & STANDARD

Filter Media : Micro Fibre Glass (Imported)
Separator : Aluminium Foil
Frame Material : Aluminium / SS / MS
Frame Type : Box / Flange
Max. Op. Temp. : 120ºC
Max. Humidity : 100% RH
Sealant : Epoxy Resin
Gasket : Syn Rubber/PE Foam/Chloropren/Neoprene Food Grade Quality
Direction of Air Flow : As desired.
